Electrical Specifications:
| Part Number | Center Frequency (MHz) | Frequency Tolerance | Insertion Loss (dB) max. | Package Code |
| R315 | 315.000 | ±30KHz / ±75KHz | 1.2 | QCC4A |
| R318 | 318.000 |
±30KHz / ±75KHz |
1.2 |
QCC4A |
| R346.8 | 346.800 |
±30KHz / ±75KHz |
1.2 |
QCC4A |
| R370 | 370.000 |
±30KHz / ±75KHz |
1.4 |
QCC4A |
| R423.22 | 423.220 |
±30KHz / ±75KHz |
1.4 |
QCC4A |
| R433.42 | 433.420 |
±30KHz / ±75KHz |
1.1 |
QCC4A |
| R433 | 433.920 |
±30KHz / ±75KHz |
1.3 | QCC4A |
| R434.42 | 434.420 |
±30KHz / ±75KHz |
1.4 |
QCC4A |
| R868.35 | 868.350 |
±75KHz / ±150KHz |
1.0 |
QCC4A |

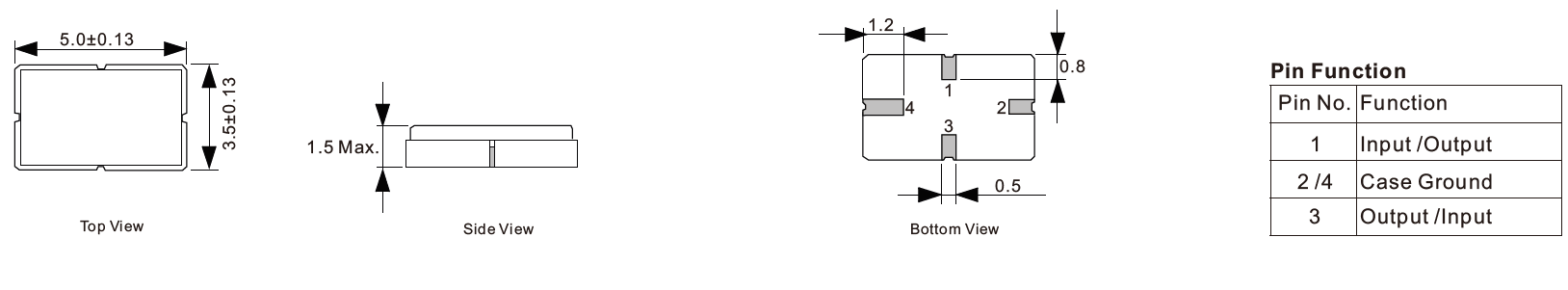

Dimensions [Unit: mm]:
