RF滤波器

1. 低损耗的声表面波器件

2. 低振幅波纹

3. 多种封装尺寸,F12(10.5*5.0*3.5),F11(11.3*4.8*3.5),TO39,QCC8B(5.0*5.0*1.5),QCC8C(5.0*5.0*1.5),DCC6(3.8*3.8*1.5),DCC6C(3.0*3.0*1.5)

4. 符合RoHS绿色环保认证

5. 主要应用于无线射频产品上,如蓝牙、无线通讯、呼叫器、无线对讲机、远程控制、军工、航海等产品上.

Electrical Specifications:

型号	中心频率(MHz)	通带带宽(MHz)	插入损耗(dB)(max.)	封装
SF1037	110.00	0.30	3.50	F12
SF1119	110.00	1.00	4.40	F11
SF1005	110.592	0.30	3.50	F12
SF1003	110.592	1.50	2.60	QCC8C
SF1118	110.60	1.50	4.80	F11
SF4053	479.50	17.0	18.00	TO39
SF4023	479.50	17/26	20.00	TO39-4
SF4010	480.00	8.00	20.00	QCC8C
SF4014	480.00	4.00	2.00	DCC6
SF4168	480.00	20.00	2.00	DCC6
SF6008	675.00	25.00	1.70	DCC6
SF7010	740.00	12.00	3.10	DCC6
SF7020	750.00	50.00	3.00	DCC6
SF7126	750.00	5.00	2.80	DCC6C
SF7139	750.00	50.00	3.00	QCC8B
SF7011	752.50	25.00	2.40	DCC6C
SF7012	752.50	25.00	2.50	F11
SF7022	752.50	25.00	1.40	F11
SF7024	752.50	18.00	1.80	DCC6C
SF7128	768.00	20.00	2.20	QCC8B
SF8023	868.00	4.00	3.20	DCC6C
SF8010	869.00	2.00	2.40	DCC6C
SF9008	914.00	4.00	3.20	F11
SF9134	915.00	26.00	2.40	DCC6
SF9135	915.00	26.00	2.60	DCC6C
SF9638	915.00	10.00	2.60	DCC6C
SF8022	823.00	4.00	3.10	DCC6C
SF8129	829.00	10.00	2.40	DCC6C
SF8028	830.00	6.00	2.40	DCC6C
SF8002	835.00	10.00	2.60	DCC6C
SF8008	836.50	25.00	2.40	DCC6C
SF8009	842.50	5.00	2.50	DCC6C
SF8021	875.00	10.00	2.30	DCC6C
SF8012	876.00	10.00	2.30	DCC6C
SF8011	881.50	25.00	2.30	DCC6C
SF8007	887.00	4.00	2.50	DCC6C
SF8025	897.00	24.00	2.40	DCC6C
SF8017	897.00	24.00	2.60	DCC6C
SF8006	897.50	35.00	2.30	DCC6C
SF8013	897.50	35.00	1.90	DCC6C
SF8036	899.00	24.00	2.20	DCC6C
SF8024	899.00	20.00	2.00	DCC6C
SF8040	899.00	20.00	2.50	DCC6C
SF8037	899.00	10.00	2.40	DCC6C
SF9073	900.00	30.00	2.50	DCC6C
SF9634	902.50	30.00	2.70	DCC6C
SF9088	902.50	25.00	2.50	DCC6C
SF9606	902.50	25.00	2.20	DCC6C
SF9044	932.00	4.00	2.70	DCC6C
SF9617	942.00	24.00	2.50	DCC6C
SF9628	942.00	24.00	2.00	DCC6C
SF9003	942.50	35.00	2.20	DCC6C
SF9609	944.00	20.00	2.10	DCC6C
SF9629	944.00	20.00	1.80	DCC6C
SF9637	944.00	20.00	3.00	DCC6C
SF9660	944.00	10.00	2.40	DCC6C
SF9064	945.00	30.00	2.70	DCC6C
SF9085	947.50	25.00	2.30	DCC6C
SF9613	947.50	25.00	2.10	DCC6C
SF9096	1722.50	25.00	2.00	DCC6C
SF9607	1722.50	25.00	1.80	DCC6C
SF9623	1732.50	45.00	2.50	DCC6C
SF9621	1740.00	45.00	2.30	DCC6C
SF9054	1745.00	20.00	2.30	DCC6C
SF9094	1745.00	20.00	2.30	DCC6C
SF9048	1747.50	75.00	2.50	DCC6C
SF9620	1747.50	75.00	2.80	DCC6C
SF9053	1765.00	20.00	2.20	DCC6C
SF9065	1770.00	30.00	2.30	DCC6C
SF9092	1795.00	20.00	2.40	DCC6C
SF9149	1800.00	30.00	3.60	DCC6C
SF9075	1800.00	20.00	2.20	DCC6C
SF9097	1817.50	25.00	2.30	DCC6C
SF9610	1817.50	25.00	2.20	DCC6C
SF9633	1827.50	45.00	2.40	DCC6C
SF9654	1832.50	55.00	3.30	DCC6C
SF9643	1832.50	60.00	2.50	DCC6C
SF9052	1840.00	20.00	2.20	DCC6C
SF9095	1840.00	20.00	2.20	DCC6C
SF9077	1842.50	75.00	3.00	DCC6C
SF9055	1860.00	20.00	2.20	DCC6C
SF9066	1865.00	30.00	2.50	DCC6C
SF9093	1890.00	20.00	2.10	DCC6C
SF9083	1900.00	40.00	1.80	DCC6C
SF9072	1950.00	60.00	1.90	DCC6C
SF9626	1950.00	60.00	2.60	DCC6C
SF9049	1955.00	30.00	2.00	DCC6C
SF9067	1960.00	60.00	2.00	DCC6C
SF9090	1965.00	50.00	2.60	DCC6C
SF9043	1970.00	30.00	2.10	DCC6C
SF9005	2017.50	15.00	3.40	DCC6C
SF9605	2017.50	15.00	2.10	DCC6C
SF9630	2132.50	45.00	2.70	DCC6C
SF9061	2140.00	60.00	1.80	DCC6C
SF9632	2140.00	60.00	2.70	DCC6C
SF9050	2145.00	30.00	2.70	DCC6C
SF9640	2313.50	27.00	2.30	DCC6C
SF9087	2345.00	50.00	2.30	DCC6C
SF9062	2515.00	30.00	2.50	DCC6C
SF9622	2555.00	40.00	2.70	DCC6C
SF9086	2595.00	40.00	3.00	DCC6C
SF9639	2605.00	60.00	2.80	DCC6C
SF9614	2655.00	40.00	3.00	DCC6C

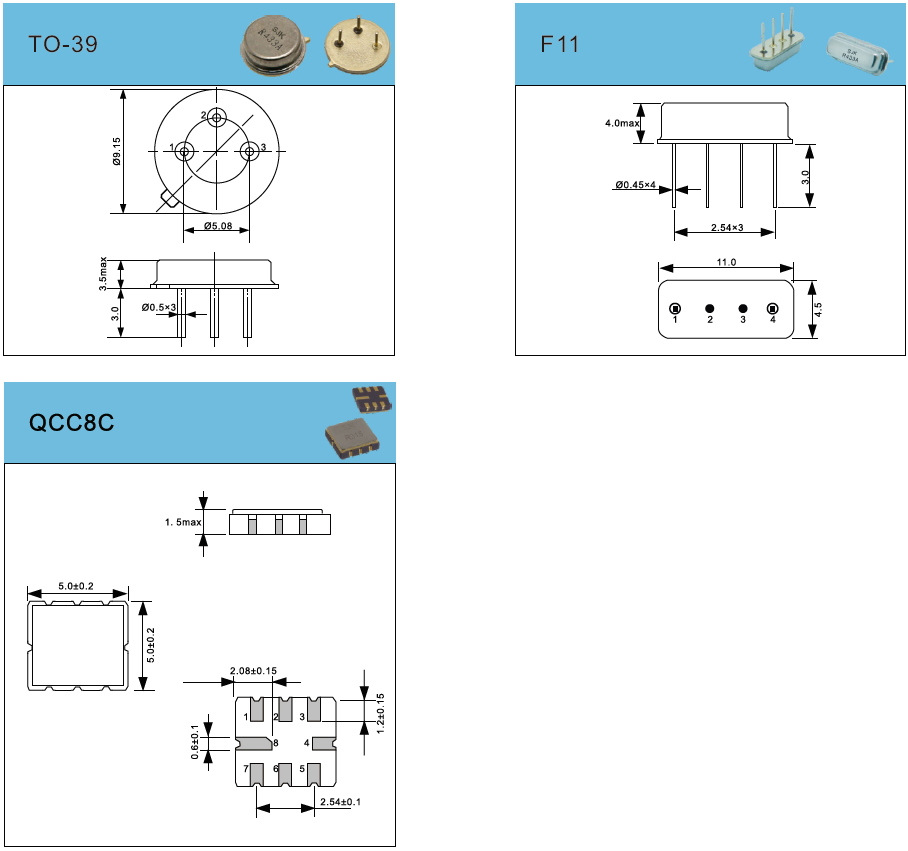

Dimensions And Footprint (Recommended) [Unit:mm]
RF声表滤波器尺寸图1

RF声表滤波器尺寸图2
