晶科鑫SJK品牌32.768KHz有源晶振产品系列采用贴片封装,主要32.768KHz有源晶振产品尺寸有SMD2016,SMD2520,SMD3225,SMD5032,SMD7050等规格,中心频率32.768KHz,采用AT切割晶片,具有高精度、高可靠性、低功耗、稳定性好等特点,欢迎各位前来购买咨询,晶科鑫专业提供晶振一站式服务.
| Photo | Series | Size(LxWxH)[mm] | Frequency Range | Operature Temperature | Output Type | Supply Voltage | Frequency stability | consumption | 样品申请 | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

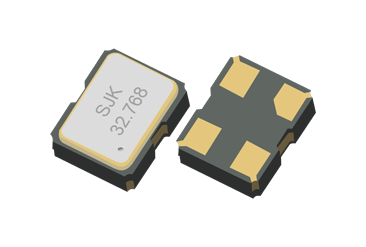

2E | 2.0×1.6×0.7 | 32.768KHz | -40~+85℃ | CMOS | 1.8V~5.0V | ±10ppm~±50ppm | 100µA max. | 样品申请 |  |
 |

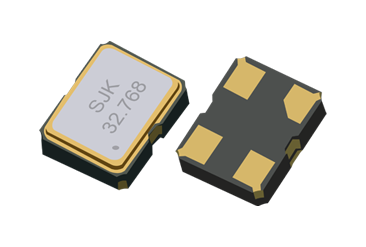

2D | 2.5×2.0×0.8 | 32.768KHz | -40~+85℃ | CMOS | 1.8V~5.0V | ±10ppm~±50ppm | 200µA max. | 样品申请 | |
 |

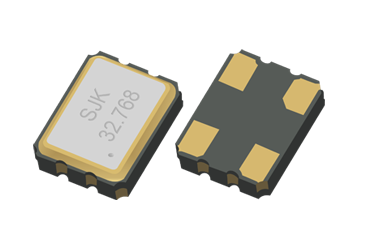

3C | 3.2×2.5×1.0 | 32.768KHz | -40~+85℃ | CMOS | 1.8V~5.0V | ±10ppm~±50ppm | 300µA max. | 样品申请 | |
 |

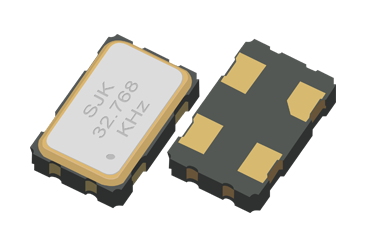

5B | 5.0×3.2×1.2 | 32.768KHz | -40~+85℃ | CMOS | 1.8V~5.0V | ±10ppm~±50ppm | 300µA max. | 样品申请 | |
 |

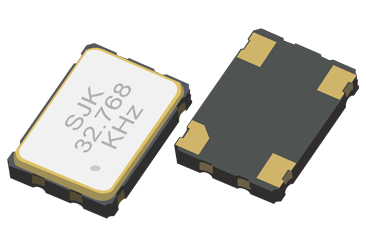

7A | 7.0×5.0×1.4 | 32.768KHz | -40~+85℃ | CMOS | 1.8V~5.0V | ±10ppm~±50ppm | 500µA max. | 样品申请 | |
